| Certification: | ISO9001:2000 |
| Model Number: | NBFP520 |
| Minimum Order Quantity: | 1 set |
|---|---|
| Packaging Details: | Cartons |
| Delivery Time: | 21-30 working days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 2000sets per month |
| Size: | 6x12m | Color: | White Or Customized |
|---|---|---|---|
| Roof Fabric: | High Quality 500g/m2 White PVC | Sidewalls Fabric: | High Quality 380g/m2 White PVC |
| Frame: | Top Grade Galanvized Steel Tube | Feature: | Durable, Waterproof, Fire-resistance |
| Usage: | Awning, Wedding, Outdoor Party | Packing: | Strong Exported Cartons |
| High Light: | wedding party tents,outdoor wedding tents |
||

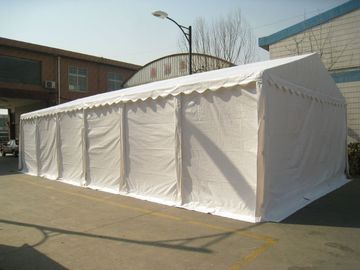

Customized 6x12m Material White Outdoor Party Tent For Wedding Marquee
1. Frames: Diameter of pipes: 38mm, thickness 1.2mm, galvanizing treatment;
2. Fittings: connectors/corners/jointers, dia.42X1.2mm;
3. Foot pads: separately;
4. Ball bungees , brass grommets, fixing ropes and pegs included;
5. The ground bar sets are included;
6. PVC (vinyl with base fabric of polyester) 500g/sqm for cover, 500g/sqm,380 g/sqm for sidewalls, UV, F/R
7. Sidewalls /side panels with clear PVC windows
8. Front and rear panels with zipper doors
9. Colors available: white, red/white, blue/white, yellow/white, green/white
10.Size: 3x3m, 3x6m, 4x6m, 4x8m, 5x6m, 5x8m, 5x10m, 6x6m, 6x8m, 6x10m, 6x12m, 7x20m, 10x10m, 10x20m
| Item | Specification |
| Clear Span Width | 6m/8m/9m/10m/12m…30m |
| Eave Height | 2.6m-3.5m |
| Ridge Height | 3.6m/4.0m/4.2m/4.4m/4.8m/6.3m/7.2m/8.9m |
| Bay Distance | 3m/5m |
| Roof Fixing | Bar Tensioning |
| Main Profie | 48x48x3mm 100x100x3mm 120x120x3mm |
| Main Allowed Windspeed | 80km/hour 0.3kn/m2 |
| Eave Connection | Hot dip Galvanized Steel Insert |
| Framework Material | Aluminium 6061/T6 |
| Hard Pressed Extruded | |
| Cover Materials | PVC coated,flame retardant to Din 4102 M2 NFPA 701 B1 750g-900g/m2, |
| Sidewall Materials | PVC coated,flame retardant to Din 4102 M2 NFPA 701 B1 750g-900g/m2, or glass walls |
| Floor | Available |
The Span of Wedding Tent arrange from 6M, 8M, 10M,12M regular size.The Eave Height is 2.6M. The structure of wedding tent adapt with bay combination design, each bay distance is 5M and it can more or less. The cover use anti-fire double PVC fabric, it meet with EURO DIN4102B1,M2 standard and weight of pvc is 850g/square meter. It has two type, white and clear pvc. The wedding tent has many options to make the tent more functional. The wedding tent is modular design, safety and anti-wind reach 80miles/h and it widely used in outdoor wedding events.
Exhibition Tent Customized
1. Car Exhibition span arrange from 3-60M.
2. The length has no limit and it extend the bay according 3m/5m per bay.
3. The regular bay distance is 3M or 5M, and it can make other size.
4. The regular eave height is 2.5M/4M( height can customized)
Frame Section of Exhibition Tent
1. The frame use the high reinforce aluminum truss and the connection part use the hot-galvanize iron truss.
2. The aluminum part and iron part are process with difference type.
The fabric for Exhibition Tent
1. The top cover and side wall covers used the double PVC of polyester made.
2. The tent has anti-water, anti-fire, anti-sun and self cleaning function
3. Anti-Fire: B1 class and equal to M2 international standards. Hard burning
Installation Way
1. Harden Screw
2. Thrilling
3. Loading plate
